Radiant Barrier Foil for Crawl Spaces & Basement

Should You Use Radiant Foil for Your Crawl Space or Basement?

Energy efficiency, moisture control, and structural protection go hand in hand when upgrading crawl spaces. At Blue Umbrella Waterproofing, we install radiant barrier foil as part of complete crawl space and basement waterproofing systems designed to help business owners and homeowners across New Jersey improve energy efficiency and manage moisture.

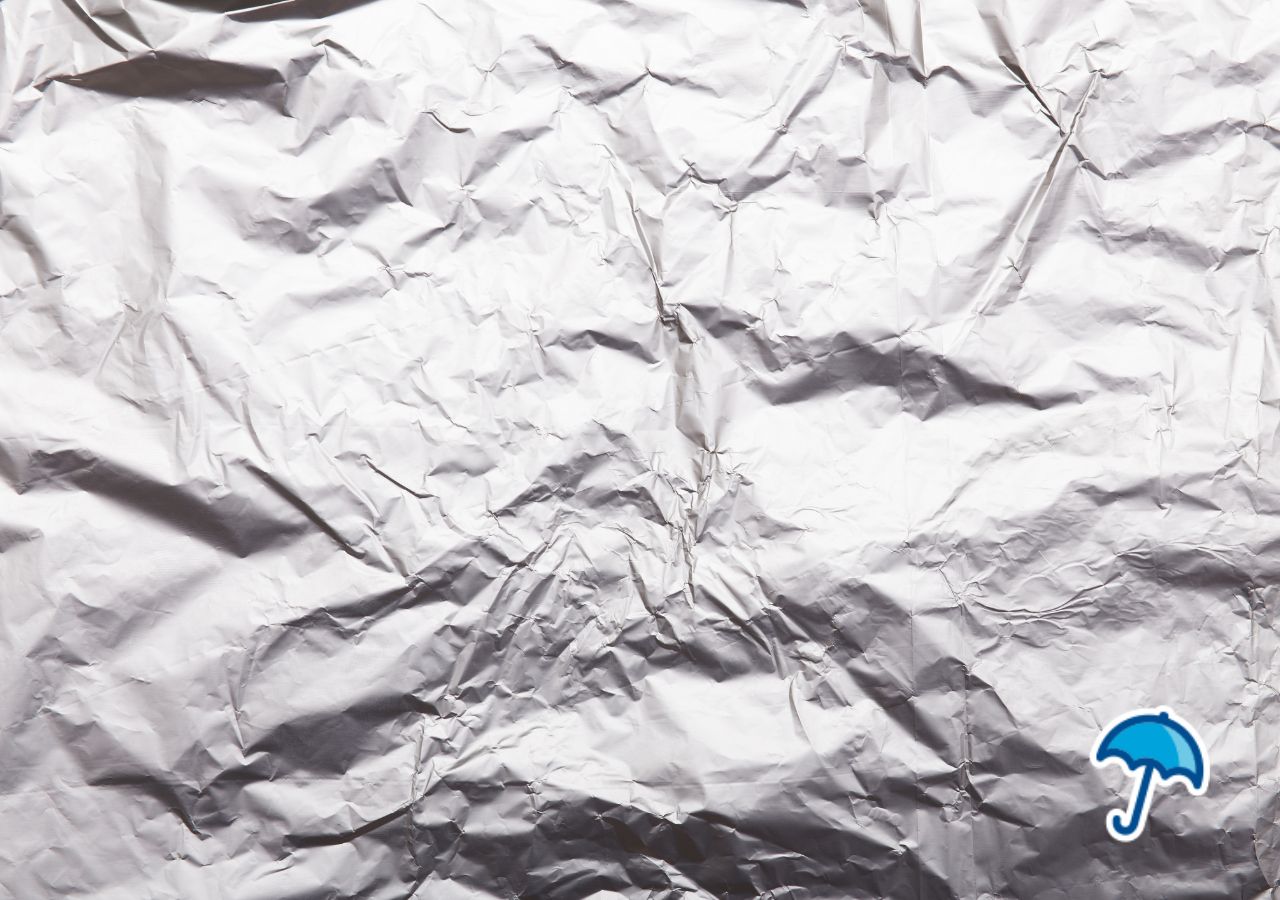

New Jersey reflective foil installation for crawl space or basement

What Is Radiant Barrier Foil?

Radiant barrier foil is a reflective insulation material that helps regulate temperature by reflecting radiant heat. Similar to the material used in emergency blankets, it’s installed on crawl space or basement walls to reduce heat transfer and support energy efficiency.

Steve Karlik, owner of Blue Umbrella Waterproofing, explains:

“We use Richtech Industries’ Eco Duo Flexi Foil on crawl space walls. It keeps the heat in and the cold out, and also acts as a vapor barrier. Any water that leaks hits the foil and drains into the French drain system.”

This dual function of thermal insulation and moisture protection makes radiant barrier foil especially beneficial in crawl spaces with dirt or sand floors, where moisture naturally rises through the ground.

How Radiant Barrier Foil Works in Crawl Spaces

Reflects Radiant Heat

Radiant barrier foil reflects radiant heat to help regulate crawl space temperatures, keeping the space warmer in winter and cooler in summer while reducing heat transfer.

Provides Thermal Insulation and Moisture Protection

When installed as part of a complete crawl space waterproofing system, radiant barrier foil provides thermal insulation and moisture protection by acting as a vapor barrier that helps direct water toward a French drain and sump pump system.

Boosts Energy Efficiency

Radiant barrier foil works best alongside crawl space encapsulation, spray foam insulation, and sealed vents. For a 1,500-square-foot crawl space, encapsulation typically costs $9,000–$12,500, but integrating radiant barrier foil with insulation may improve energy efficiency by 10–15% annually, helping maximize your return on investment.

Somerset, NJ basement waterproofing company

Installation Considerations

Proper installation is critical to maximizing the performance of radiant barrier foil in your crawl space. To get the best results, every component of the crawl space waterproofing system must work together.

Key installation considerations include:

  • Wall Preparation: Clean, dry crawl space walls help ensure proper adhesion and maximize the thermal performance of radiant barrier foil.
  • Encapsulation Integration: Radiant barrier foil works best as part of a complete crawl space encapsulation system that includes a 20-mil crawl space liner, drainage matting, taped seams, and sealed vents.
  • Dehumidification: Even with radiant barrier foil, a high-capacity crawl space dehumidifier helps maintain humidity around 50%, reducing the risk of mold, wood rot, and pest activity.

Signs of poor crawl space installation, such as thin crawl space liners, untaped seams, missing drainage matting, or unsealed vents, can undermine the effectiveness of radiant barrier foil and the entire crawl space waterproofing system.

Benefits of Radiant Barrier Foil

As part of a complete crawl space encapsulation and waterproofing system, radiant barrier foil offers several benefits for New Jersey business owners and homeowners looking to improve energy efficiency, moisture control, and long-term crawl space protection.

  • Temperature Control: Reduces extreme heat or cold in the crawl space.
  • Moisture Protection: Adds a vapor barrier, directing leaks safely to drains.
  • Energy Savings: Reduces HVAC load, improving home efficiency.
  • Pest Prevention: Sealed air gaps and controlled humidity deter rodents and insects.

Radiant barrier foil delivers the greatest benefits when it’s part of a complete crawl space waterproofing system. Combined with proper insulation, moisture control, and dehumidification, it helps protect your home while potentially increasing home value by $10,000–$25,000 in New Jersey.

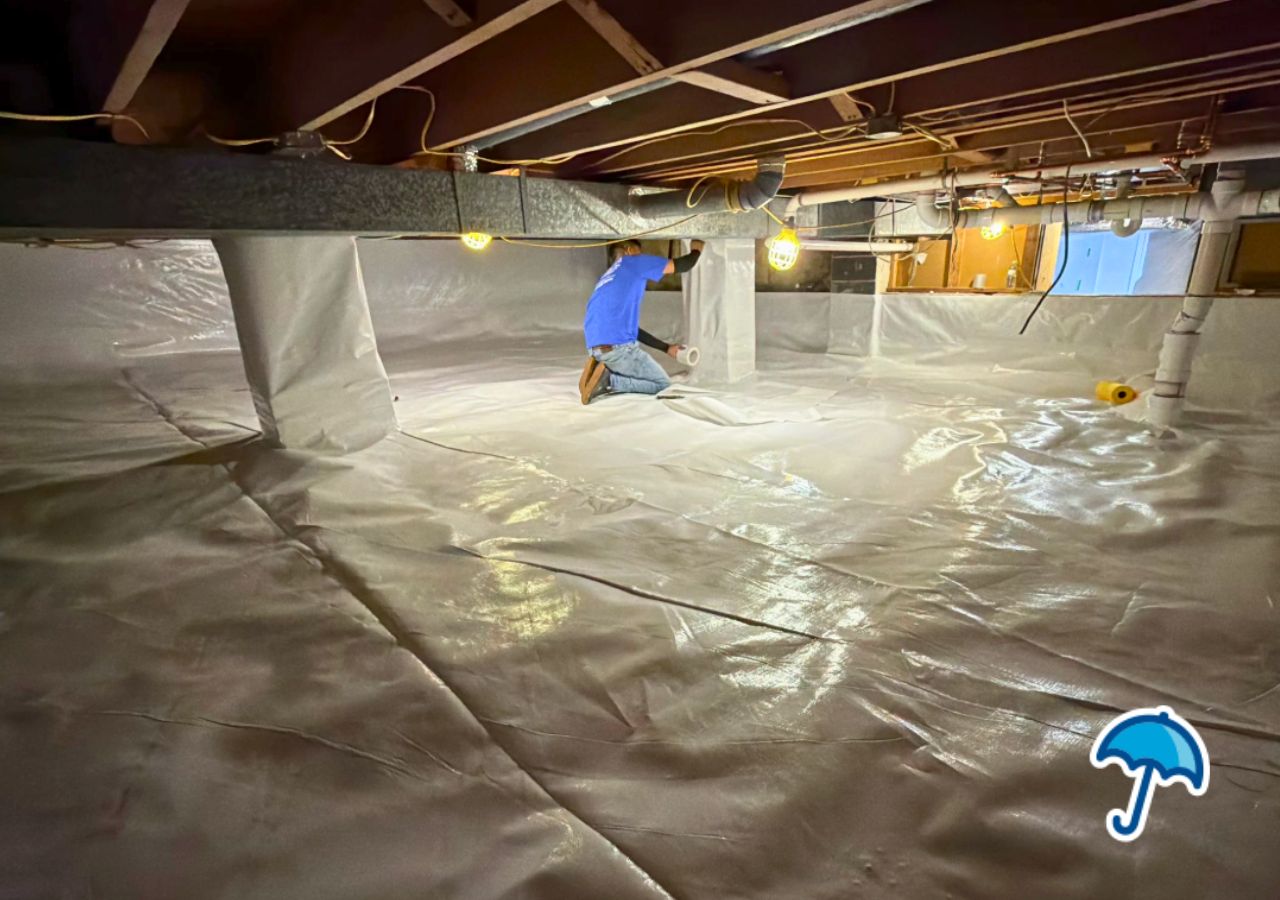

New Jersey crawl space encapsulation company final result

Cost Considerations

Crawl Space SizeEncapsulation Cost (with Radiant Foil)Band Board InsulationNotes
1,000 sq. ft.$6,500 – $8,500$1,700 – $2,200Standard vapor barrier and foil integration
1,500 sq. ft.$9,000 – $12,500N/AMay include drainage matting and vent sealing
2,000 sq. ft.$14,000 – $17,000N/AFull waterproofing, encapsulation, and band board insulation

Costs vary based on floor condition, vent sealing, debris removal, and access challenges, consistent with previous encapsulation and insulation data.

When Radiant Barrier Foil May Not Be Recommended

While radiant barrier foil is an effective addition to many crawl spaces, it isn’t the right solution for every situation. The following conditions should be addressed before installation:

  • Extremely Low Crawl Spaces: Crawl spaces with less than 12–18 inches of clearance may not provide enough room for proper installation.
  • Flood-Prone Locations: Frequent standing water can repeatedly damage radiant barrier foil and other encapsulation materials.
  • Improper Drainage: Without a French drain or sump pump, water can collect beneath the vapor barrier, creating a “water bed” effect.

Proper drainage and humidity control are essential for radiant barrier foil and any crawl space insulation system to perform as intended.

Crawl space encapsulation New Jersey
Completed Crawlspace Encapsulation

Part of a Complete Crawl Space System

Radiant barrier foil delivers the best long-term results when it’s installed as part of a complete crawl space waterproofing system that includes:

  • Professional encapsulation with vapor barrier
  • Spray foam or foam board insulation on band boards
  • French drains and sump pumps for water management
  • Dehumidifiers for humidity control

If you’re considering radiant barrier foil for your New Jersey home or business, Blue Umbrella Waterproofing can evaluate your crawl space and recommend the right combination of waterproofing, encapsulation, insulation, and moisture control solutions. Every crawl space is different, and the best results come from a system designed for your property’s specific conditions.
